VENEER PRODUCTION

  • knife grinding machine
knife grinding machine

knife grinding machine

  • knife grinding machine
  • 4 feet or 8 feet
  • automatic working
  • Product description: knife grinding machine,4 feet or 8 feet knife,can used for 4 feet or 8 feet log debarker knife or veneer peleing machine knife
  • INQUIRY

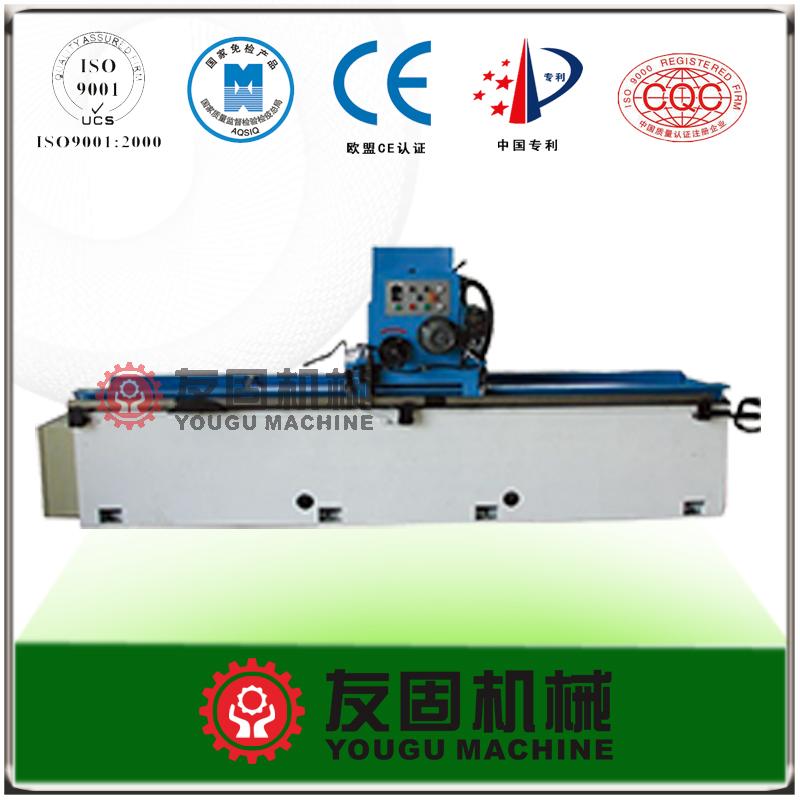

knife grinding machine

Main Feature:

1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.

2. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.

3. The machine chooses rack driving, so the grinding head traveling is smoother.

4. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.

5. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.

6. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.

Technical specification of the knife grinder

Name/ model

HM1815

HM1822

HM1830

HM1835

HM1842

Max grinding length

1500mm

2200mm

3000mm

3500mm

4200mm

Width of the working table

180mm

180mm

180mm

180mm

180mm

Grinding head power

4kw

4kw

4kw

4kw

4kw

Linear speed of grinding wheel

15m/s

15m/s

15m/s

15m/s

15m/

Speed of the sliding plate

Stepless speed change

Tilting range of the working table

±90°

±90°

±90°

±90°

±90°
