VENEER PRODUCTION

  • 8ft core veneer vacuum stacker veneer sorting line
8ft core veneer vacuum stacker veneer sorting line

8ft core veneer vacuum stacker veneer sorting line

  • 8 feet core veneer
  • vacuum stacker
  • speed can adjustable
  • can make many bins
  • Product description: core veneer stacker High speed stacking, the max speed can reach 100 m/min Fully automatic, automatic transmission, automatic veneer grading, and automatic stacking. Stable running, optimal design a
  • INQUIRY

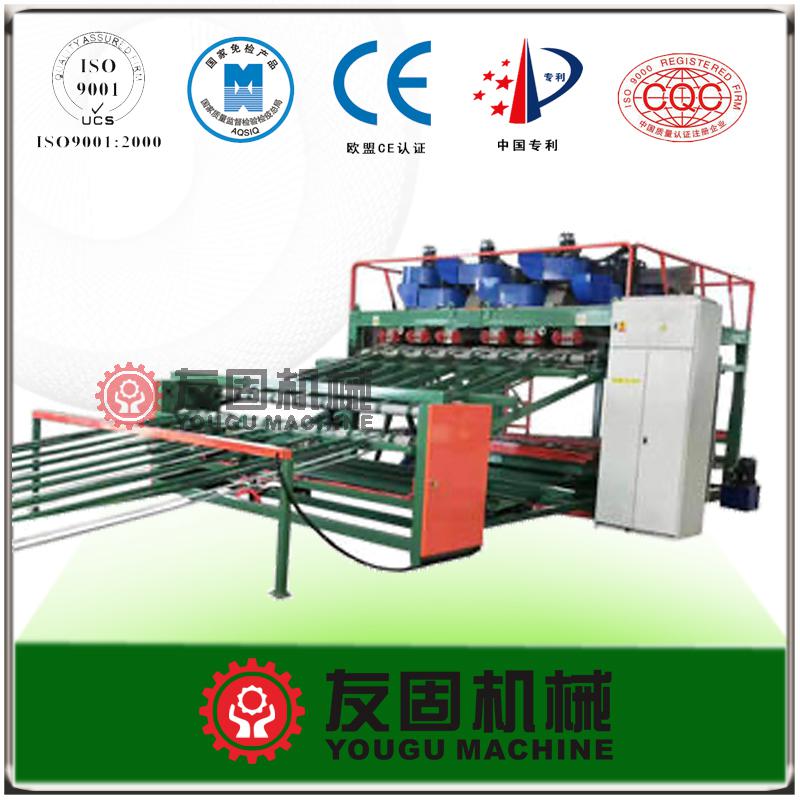

Eight Feet Core Veneer Vacuum Stacker


ITEM UNIT PARAMETER
Fan Power KW 3 *10
Veneer Conveyor Power KW 2.2*1
Stack Transportation Power KW 2.2*4
Unqualified Veneer Conveyor Power KW 1.5*1
The Secondary Transportation Power KW 2.2*1
Hydraulic Lift Platform Power KW 4*2
Veneer Pusher Motor KW 2.6(servo motor)*2
Total Power KW 57.9
Stacking Width MM 1800
Stacking Length MM 2600
Veneer Thickness MM 0.8-3.0
Max Stacking Height MM 1200
Max Stacking Speed M/MIN 100
Minimum Diameter of Detection Hole MM 50
Grading Number
3
Stacking Number
2
Lifting Method
Hydraulic
Dimension MM 14500*3300*2900
Weight KG
6200
  1. High speed stacking, the max speed can reach 100 m/min

  2. Fully automatic, automatic transmission, automatic veneer grading, and automatic stacking.

  3. Stable running, optimal design and reliable spare parts supplier guarantee the stable running of this machine
