  • Product description: in particular wood-based panels plywood production process, we need to repair natural defects board. For a long time, China's plywood production enterprise is mostly hand-repair method approach, even
  • INQUIRY

in particular wood-based panels plywood production process, we need to repair natural defects board. For a long time, China's plywood production enterprise is mostly hand-repair method approach, even with a knife die direct repair, and can only make out shapes and blocks, and then manually filling and paper tape or hot melt adhesive filaments, the process material costs, labor costs are also time-consuming, depending on the mend after being significantly affect the appearance.

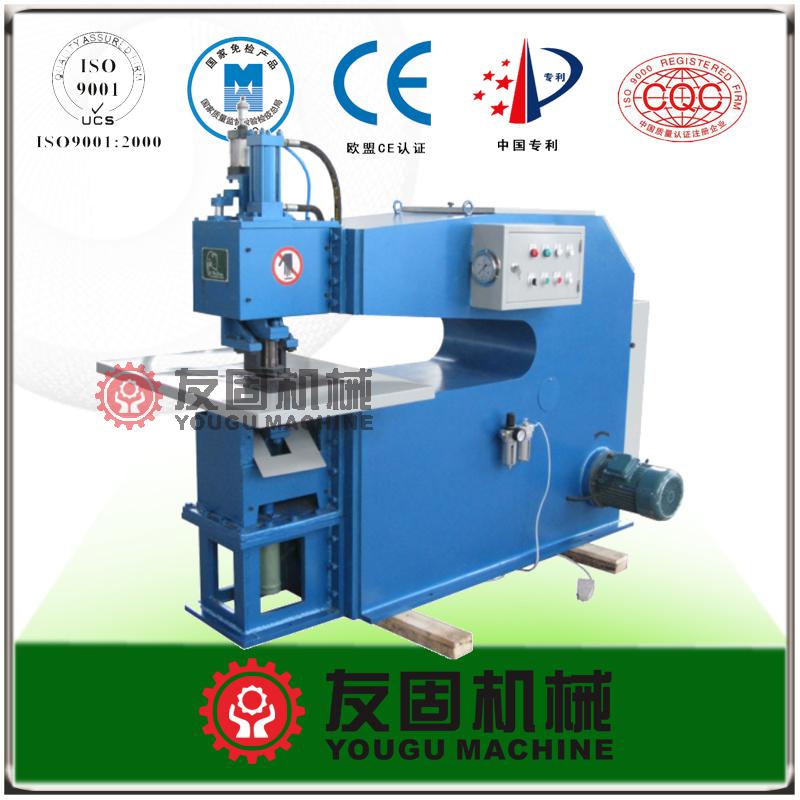

This veneer patching machine adopts a pressing mold, a mold and the upper and lower punches in a work process, completes all patching work automatically, fill industry gaps. The machine is suitable for a variety of wood veneer repair. It is simple, mending speed high, save a lot of manpower, reduce production costs and improve the quality level of the board.

Model

WB100

WB150

Mending veneer thickness

0.8~3mm

0.8~3mm

Mending veneer size(butterfly model)

60*100mm

90*150mm

Depth

830mm

830mm

Mending speed

2s/time

2s/time

Power

5.5kw

5.5kw

Compressed air

4~6kg/cm2

4~6kg/cm2

Normal oil pressure

16Mpa

16Mpa

Diameter of cylinder

Φ80 mm

Φ80 mm

Overall dimension

1815*1188*1750mm

1815*1188*1750mm

Weight

1200kg

1200kg
